Modelling the glitch#

With asterion.GlitchModel, you can model the helium-II ionization and base of the convective zone glitches given radial mode frequencies. This can be done with modelled or observed modes (with and without observational uncertainty). This notebook will go through both situations.

[1]:

import arviz as az
import matplotlib.pyplot as plt

import asterion as ast
from asterion import GlitchModel, Inference
from asterion.data import example_star

# Plotting style setup
ast.style.use("asterion-light")

/Users/alyttle/.pyenv/versions/asterion/lib/python3.9/site-packages/jax/_src/lib/__init__.py:33: UserWarning: JAX on Mac ARM machines is experimental and minimally tested. Please see https://github.com/google/jax/issues/5501 in the event of problems.
  warnings.warn("JAX on Mac ARM machines is experimental and minimally tested. "

Data#

Import stellar evolutionary track.

[2]:

n = example_star["n"]
nu = example_star["nu"]
nu_max = example_star["nu_max"]
delta_nu = example_star["delta_nu"]

print('nu_max   = {0:.1f} ± {1:.1f} muHz'.format(*nu_max))
print('delta_nu = {0:.2f} ± {1:.2f} muHz'.format(*delta_nu))

nu_max   = 2357.7 ± 23.6 muHz
delta_nu = 111.84 ± 0.10 muHz

[3]:

_, ax = plt.subplots()

ax.plot(nu%delta_nu[0], nu, marker='o', linestyle='none', label='truth')
ax.set_xlabel(r'$\nu$ ' + f'modulo {delta_nu[0]:.2f} ' + r'($\nu/\mathrm{\mu Hz}$)')
ax.set_ylabel(r'$\nu$ ($\mathrm{\mu Hz}$)')
ax.set_title('Echelle plot')
ax.legend();

Model without observational error#

We can create our model like this. We need to give it a prior for delta_nu and nu_max. Optionally, we can give it a prior for asymptotic fit parameter epsilon, but by default this is fairly uninformative. We can also pass the effective termperature of the star to improve our prior for the glitch acoustic depths.

[4]:

model = GlitchModel(nu_max, delta_nu)
model

INFO[2022-05-06 13:04:44,775]: Unable to initialize backend 'tpu_driver': NOT_FOUND: Unable to find driver in registry given worker:
INFO[2022-05-06 13:04:44,776]: Unable to initialize backend 'gpu': NOT_FOUND: Could not find registered platform with name: "cuda". Available platform names are: Host Interpreter
INFO[2022-05-06 13:04:44,777]: Unable to initialize backend 'tpu': INVALID_ARGUMENT: TpuPlatform is not available.

[4]:

GlitchModel(
 (2357.692764609278, 23.57692764609278),
 (111.8411243661503, 0.1),
 teff=None,
 epsilon=None,
 seed=0
)

Inference#

We setup an inference class with the model and can give it number of warmup steps and samples. The seed is required for reproducibility.

[5]:

infer = Inference(model, n=n, nu=nu, seed=25)

Sample posterior#

We can sample from the posterior using one of two methods, 'nested' or 'mcmc'. Nested sampling is better suited to multi-modal solutions over MCMC. Since we are fitting sinusoidal functions, there may be cases where one or more periods fit the data, leading to instability during MCMC. Also, the glitch phase term \(\phi\) is circular, which can make it difficult to deal with the gradient at \(\pm\pi\) for gradient-based MCMC sampling methods. Therefore, we recommend using the nested sampling method, although note that the package on which is is based, ‘jaxns’ is still in early development.

If you want to sample using MCMC, follow the advice of the warning when initialising Inference and modify the distributions for \(\phi\) like so,

import numpyro.distributions as dist
model.he_glitch.phi = dist.VonMises(0.0, 0.1)
model.cz_glitch.phi = dist.VonMises(0.0, 0.1)

[11]:

infer.sample(
    num_samples=2000,
    method='nested',  # default method
    num_live_points=50,  # Should be ~ 50 per expected posterior mode
    depth=5,
)

Running nested sampling using the 'multi_ellipsoid' sampler with 50 live points and 50000 maximum samples...
Completed in 16.3 seconds.

Posterior predictive check#

[12]:

infer.posterior_predictive()

When use nested sampling the inference data may produce some warnings. This is because we save the weighted samples in a custom group which is not defined by arviz. You may ignore these.

[13]:

data = infer.get_data()
data

[14]:

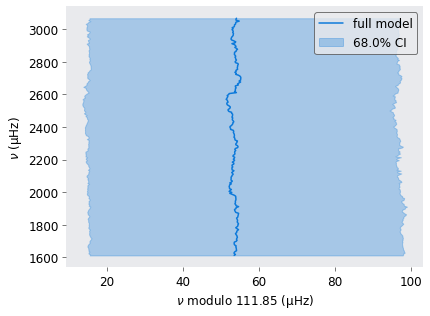

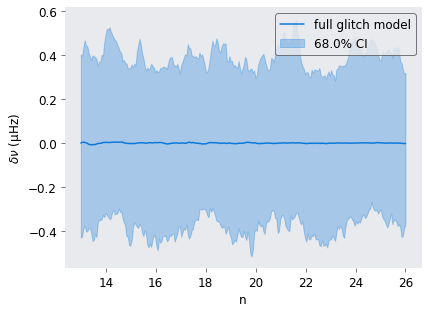

ax = ast.plot_glitch(data)

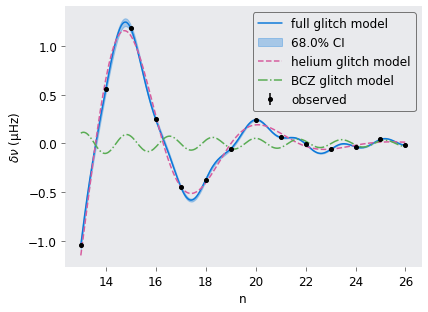

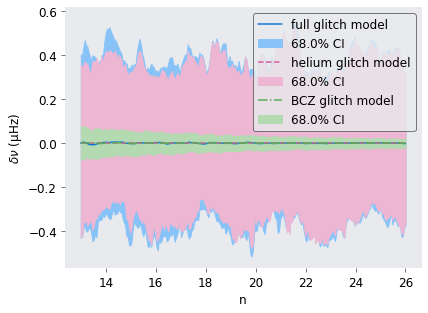

ax = ast.plot_glitch(data, kind='helium', quantiles=[], observed=False, ax=ax)
ax = ast.plot_glitch(data, kind='bcz', quantiles=[], observed=False, ax=ax)

[15]:

# You can change the x-axis variable to frequency

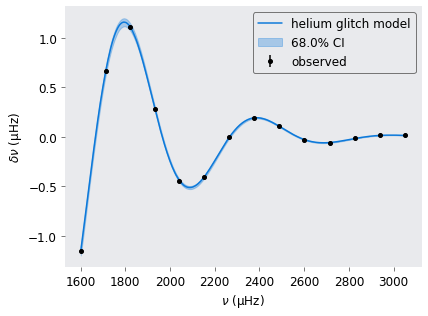

ast.plot_glitch(data, kind='helium', x_var="nu");

[16]:

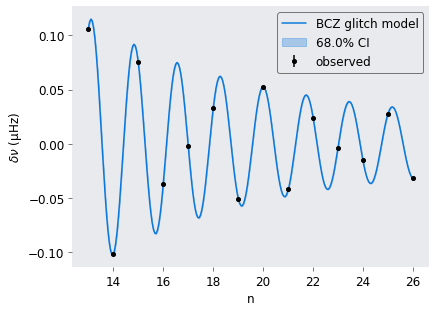

ast.plot_glitch(data, kind='BCZ');

You can also plot an echelle diagram to view different aspects of the model.

[17]:

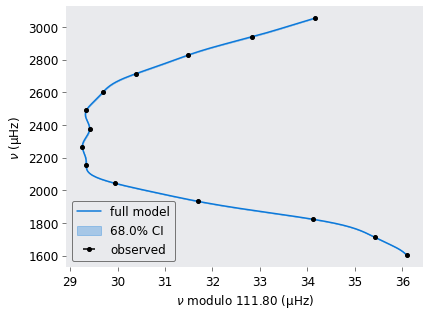

ast.plot_echelle(data);

Or you could view the model without the glitches.

[18]:

ast.plot_echelle(data, kind='glitchless');

To quickly view the parameter names you can inspect data or just call the following.

[19]:

ast.get_var_names(data)

[19]:

['a_cz',
 'a_he',
 'b_he',
 'cz_amplitude',
 'cz_nu_max',
 'delta_nu',
 'dnu_cz',
 'dnu_he',
 'epsilon',
 'he_amplitude',
 'he_nu_max',
 'log_a_cz',
 'log_a_he',
 'log_b_he',
 'log_tau_cz',
 'log_tau_he',
 'nu_bkg',
 'nu_max',
 'phi_cz',
 'phi_he',
 'tau_cz',
 'tau_he']

Let’s just plot glitch parameter names.

[20]:

glitch_names = ['log_a_he', 'log_b_he', 'log_tau_he', 'phi_he', 'log_a_cz', 'log_tau_cz', 'phi_cz']

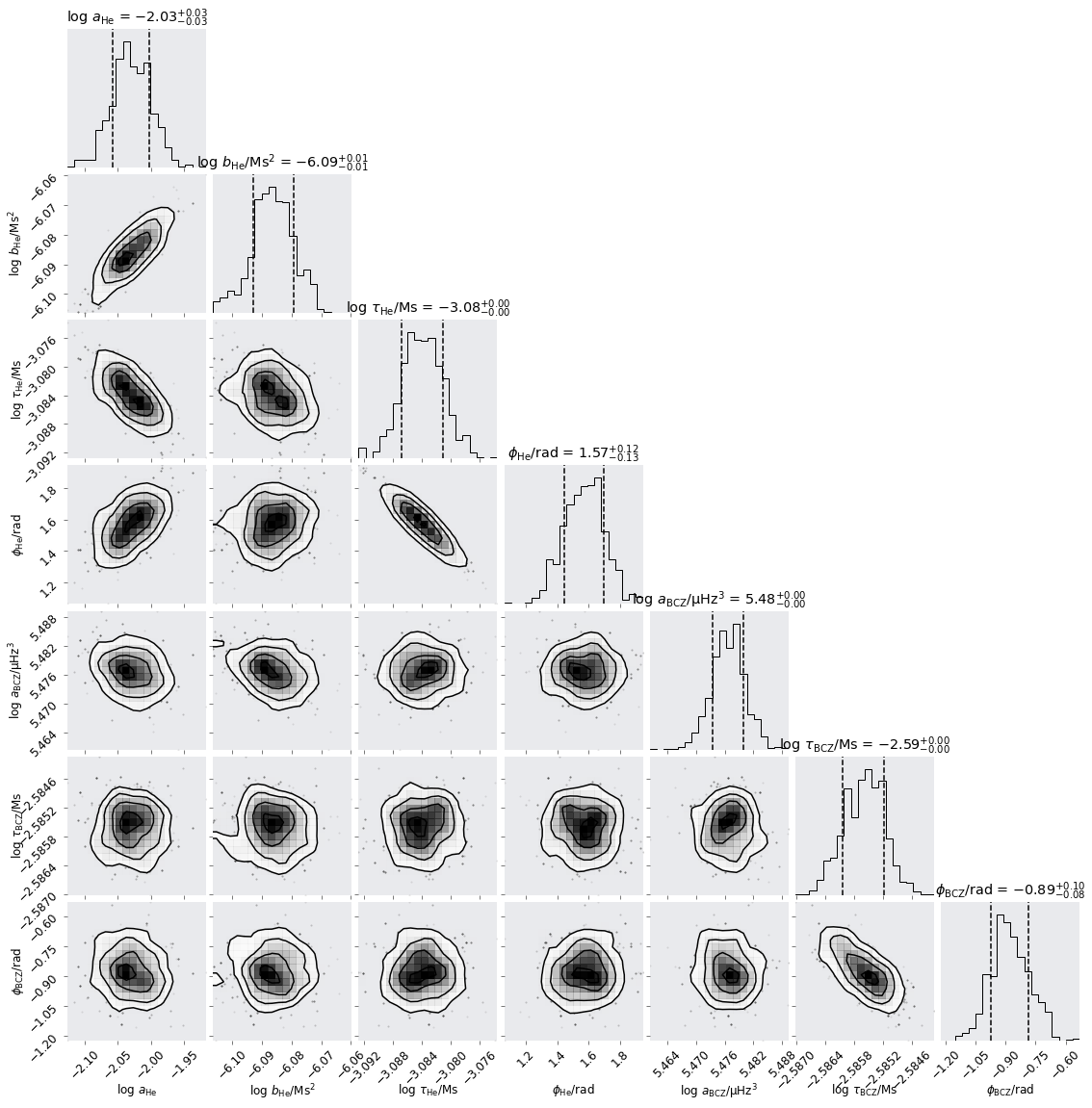

ast.plot_corner(data, var_names=glitch_names);

How about the background parameters and average glitch amplitudes.

[21]:

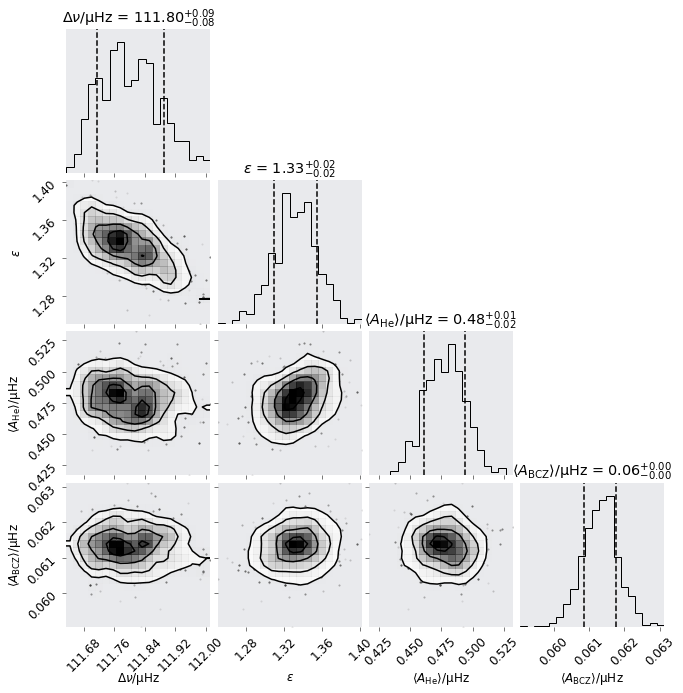

ast.plot_corner(data, var_names=['delta_nu', 'epsilon', 'he_amplitude', 'cz_amplitude']);

We can even plot from the posterior precictive, that is to say the predicted values for a given variable. E.g. 'nu' for the first 5 radial orders.

[22]:

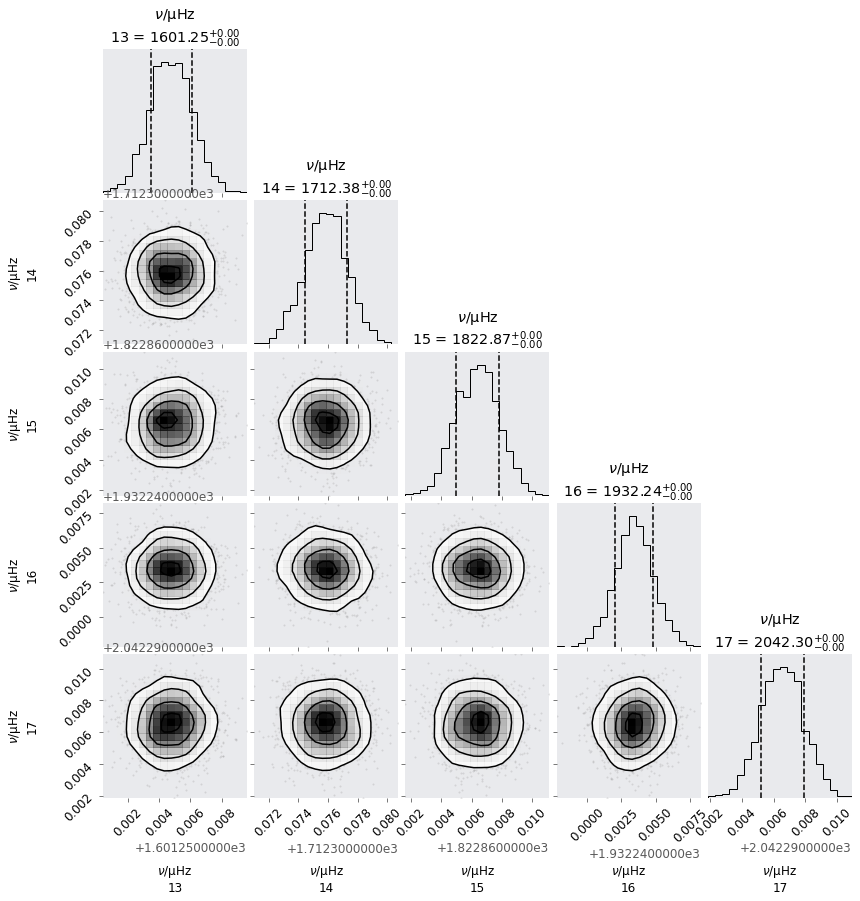

ast.plot_corner(data, group='posterior_predictive', var_names=['nu'], coords={'n': n[:5]}, labelpad=0.15);

You can also pass data to arviz functions. Note, if using nested sampling, some functions like traceplot or rhat are useless since they are tailored to MCMC methods.

Below, we plot the prior predictive and the posterior for the glitch parameters. We can use asterion.get_labeller to get an arviz labeller to replace variable names with their symbols and units.

[23]:

import arviz as az

labeller = ast.get_labeller(data, var_names=glitch_names)

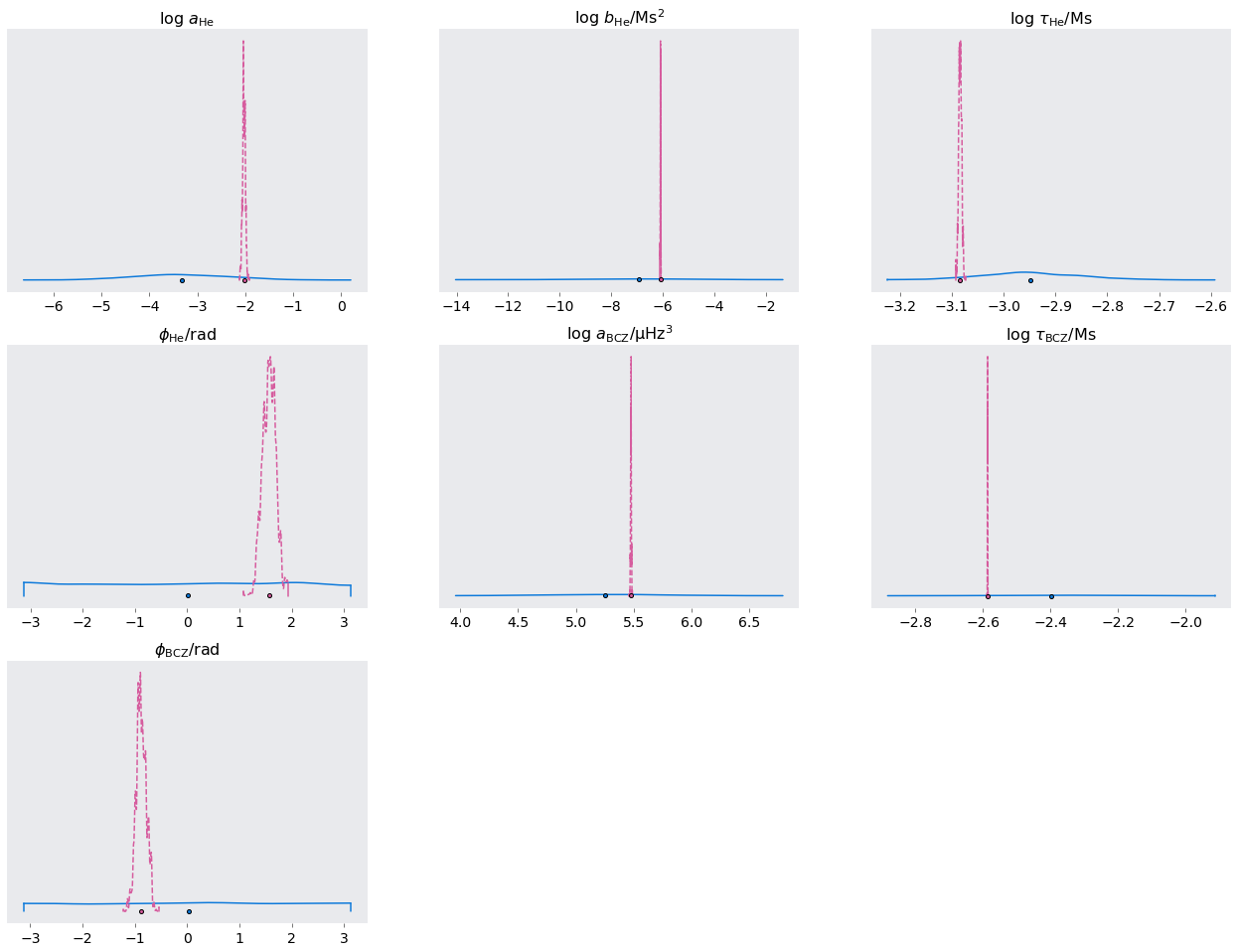

ax = az.plot_density(data, group='prior_predictive', colors='C0',
                     var_names=glitch_names, hdi_prob=1., labeller=labeller)
ax = az.plot_density(data, group='posterior', colors='C1',
                     var_names=glitch_names, hdi_prob=1., labeller=labeller,
                     ax=ax)

Saving the inference data#

[24]:

data.to_netcdf('data/inference_data.nc')

[24]:

'data/inference_data.nc'

Generating summary tables#

You can generate a table for the results data for a chosen data dimension(s). E.g. all the data without any dimensions can be obtained like so. By default, the values are rounded using the standard error on the mean as a guide, although you may pass your own dictionary of formatting rules.

[25]:

ast.get_table(data, dims=())

[25]:

	a_cz	a_he	b_he	cz_amplitude	cz_nu_max	delta_nu	epsilon	he_amplitude	he_nu_max	log_a_cz	log_a_he	log_b_he	log_tau_cz	log_tau_he	nu_max	phi_cz	phi_he	tau_cz	tau_he
metric
mean	299742.0	0.00936	8.198000e-07	0.06132	0.05383	111.803	1.3319	0.4778	0.2297	5.47673	-2.0299	-6.0863	-2.585594	-3.08392	2360.2	-0.878	1.570	0.002597	0.000824
sd	2397.0	0.00064	1.360000e-08	0.00049	0.00121	0.079	0.0233	0.0160	0.0201	0.00347	0.0295	0.0072	0.000422	0.00288	23.8	0.097	0.127	0.000003	0.000005
16th	297446.0	0.00876	8.075000e-07	0.06085	0.05255	111.714	1.3092	0.4611	0.2095	5.47341	-2.0576	-6.0929	-2.586034	-3.08680	2336.3	-0.971	1.443	0.002594	0.000819
50th	299848.0	0.00932	8.199000e-07	0.06134	0.05376	111.797	1.3326	0.4788	0.2290	5.47690	-2.0306	-6.0862	-2.585544	-3.08395	2360.6	-0.887	1.572	0.002597	0.000824
84th	301949.0	0.00996	8.331000e-07	0.06177	0.05516	111.890	1.3544	0.4937	0.2490	5.47993	-2.0017	-6.0793	-2.585183	-3.08102	2384.4	-0.785	1.694	0.002599	0.000830

You can also format the table using astropy, which makes use of quantity unit metadata.

[26]:

table = ast.get_table(data, dims=(), fmt='astropy')
table

[26]:

Table length=5

metric	a_cz	a_he	b_he	cz_amplitude	cz_nu_max	delta_nu	epsilon	he_amplitude	he_nu_max	log_a_cz	log_a_he	log_b_he	log_tau_cz	log_tau_he	nu_max	phi_cz	phi_he	tau_cz	tau_he
	uHz3		Ms2	uHz	uHz	uHz		uHz	uHz	dex(uHz3)	dex	dex(Ms2)	dex(Ms)	dex(Ms)	uHz	rad	rad	Ms	Ms
str4	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64
mean	299742.0	0.00936	8.198e-07	0.06132	0.05383	111.803	1.3319	0.4778	0.2297	5.47673	-2.0299	-6.0863	-2.585594	-3.08392	2360.2	-0.878	1.57	0.00259661	0.0008243
sd	2397.0	0.00064	1.36e-08	0.00049	0.00121	0.079	0.0233	0.016	0.0201	0.00347	0.0295	0.0072	0.000422	0.00288	23.8	0.097	0.127	2.52e-06	5.5e-06
16th	297446.0	0.00876	8.075e-07	0.06085	0.05255	111.714	1.3092	0.4611	0.2095	5.47341	-2.0576	-6.0929	-2.586034	-3.0868	2336.3	-0.971	1.443	0.00259398	0.0008188
50th	299848.0	0.00932	8.199e-07	0.06134	0.05376	111.797	1.3326	0.4788	0.229	5.4769	-2.0306	-6.0862	-2.585544	-3.08395	2360.6	-0.887	1.572	0.00259691	0.0008242
84th	301949.0	0.00996	8.331e-07	0.06177	0.05516	111.89	1.3544	0.4937	0.249	5.47993	-2.0017	-6.0793	-2.585183	-3.08102	2384.4	-0.785	1.694	0.00259906	0.0008298

Or, we may want a table for all variables with the dimension \(n\) (i.e. the individual modes) and from the posterior predictive group (to include the predicted frequencies for \(n\)).

[27]:

ast.get_table(data, dims=('n',), group='posterior_predictive')

[27]:

		dnu_cz	dnu_he	nu	nu_bkg
metric	n
mean	13	0.106131	-1.14883	1601.25475	1602.35
	14	-0.101699	0.66000	1712.37587	1714.15
	15	0.075015	1.10609	1822.86639	1825.95
	16	-0.036906	0.28506	1932.24344	1937.76
	17	-0.001847	-0.44218	2042.29653	2049.56
...	...	...	...	...	...
84th	22	0.024687	-0.02383	2601.02296	2610.44
	23	-0.002523	-0.05540	2713.51305	2722.30
	24	-0.014987	-0.01563	2826.40052	2834.15
	25	0.028301	0.01535	2939.55975	2946.02
	26	-0.031570	0.01410	3052.67195	3057.87

70 rows × 4 columns

Model with observational error#

The example star has frequencies with added noise to simulate observations.

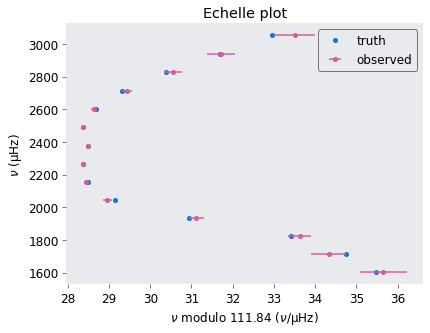

[28]:

nu_obs = example_star["nu_obs"]
nu_err = example_star["nu_err"]

ax = plt.gca()
ax.plot(nu%delta_nu[0], nu, marker='o', linestyle='none', label='truth')
ax.errorbar(nu_obs%delta_nu[0], nu_obs, xerr=nu_err, marker='o',
            linestyle='none', label='observed')

ax.set_xlabel(r'$\nu$ ' + f'modulo {delta_nu[0]:.2f} ' + r'($\nu/\mathrm{\mu Hz}$)')
ax.set_ylabel(r'$\nu$ ($\mathrm{\mu Hz}$)')
ax.set_title('Echelle plot')
ax.legend();

Inference#

We can add the uncertainty in place like so.

[29]:

# We update the prior to simulate future work on improving prior

import numpyro.distributions as dist

model.he_glitch.log_b = dist.Normal(-6.1, 0.1)

[30]:

infer.nu_err = nu_err
infer.nu = nu_obs

[31]:

infer.sample(
    num_samples=2000,
    method='nested',  # default method
    num_live_points=100,  # Should be ~ 50 per expected posterior mode
    depth=7,
)

Running nested sampling using the 'multi_ellipsoid' sampler with 100 live points and 50000 maximum samples...
Completed in 11.3 seconds.

[32]:

infer.posterior_predictive()

[33]:

data = infer.get_data()
data

[34]:

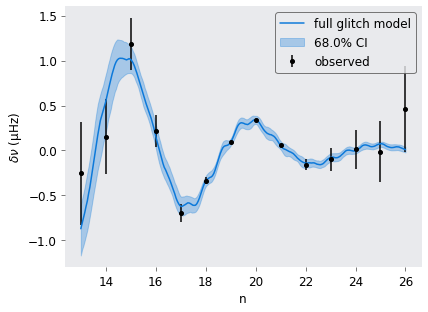

ast.plot_glitch(data);

[35]:

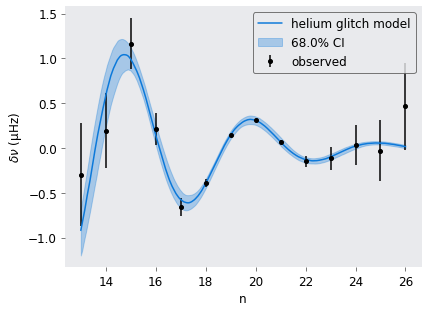

ast.plot_glitch(data, kind='He');

[36]:

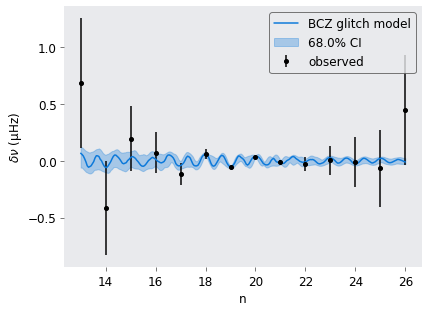

ast.plot_glitch(data, kind='CZ');

[37]:

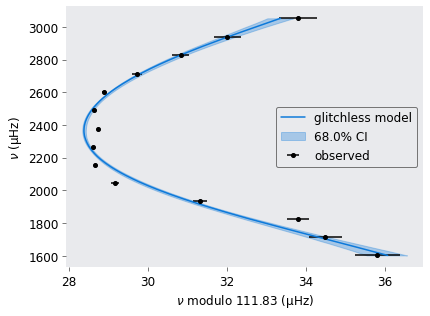

ast.plot_echelle(data, kind='glitchless');

[38]:

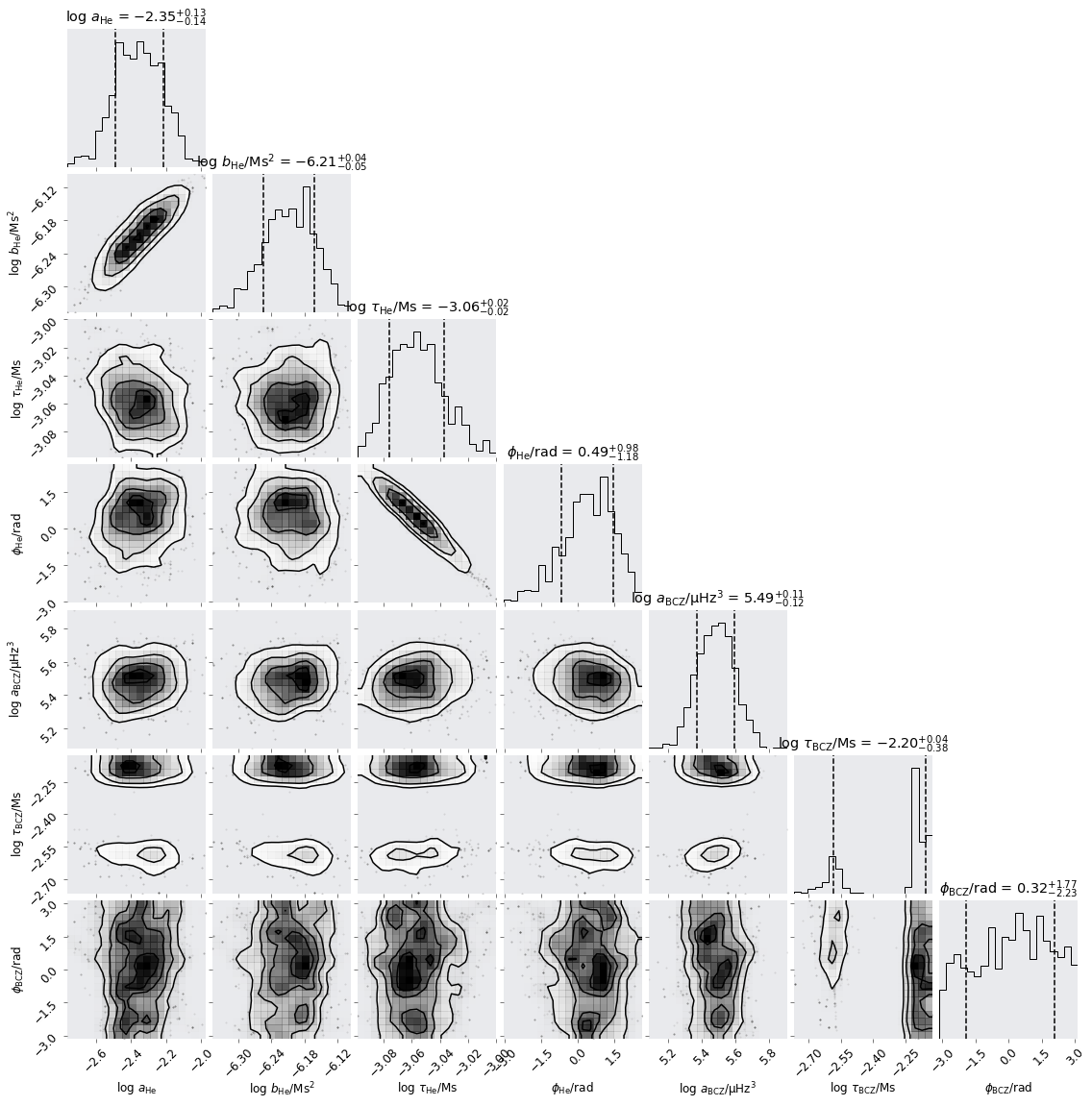

ast.plot_corner(data, var_names=glitch_names);

[39]:

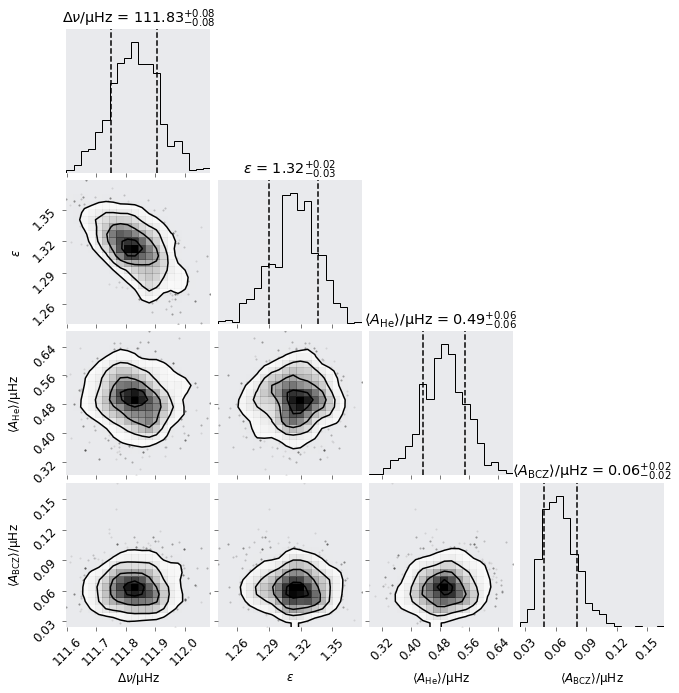

ast.plot_corner(data, var_names=['delta_nu', 'epsilon', 'he_amplitude', 'cz_amplitude']);

[40]:

ast.get_table(data, dims=())

[40]:

	a_cz	a_he	b_he	cz_amplitude	cz_nu_max	delta_nu	epsilon	he_amplitude	he_nu_max	log_a_cz	log_a_he	log_b_he	log_tau_cz	log_tau_he	nu_max	phi_cz	phi_he	tau_cz	tau_he
metric
mean	314400.0	0.00461	6.220000e-07	0.0643	0.0565	111.830	1.3137	0.492	0.329	5.484	-2.358	-6.209	-2.298	-3.0561	2358.9	0.18	0.39	0.00544	0.000880
sd	80300.0	0.00146	6.500000e-08	0.0164	0.0146	0.082	0.0225	0.062	0.050	0.110	0.137	0.046	0.186	0.0192	19.2	1.70	1.07	0.00182	0.000039
16th	234900.0	0.00323	5.560000e-07	0.0480	0.0420	111.750	1.2900	0.433	0.278	5.371	-2.491	-6.255	-2.585	-3.0759	2342.3	-1.91	-0.69	0.00260	0.000840
50th	308300.0	0.00444	6.210000e-07	0.0630	0.0552	111.830	1.3154	0.490	0.330	5.489	-2.352	-6.207	-2.200	-3.0569	2358.9	0.32	0.49	0.00631	0.000877
84th	396000.0	0.00605	6.890000e-07	0.0810	0.0707	111.905	1.3361	0.550	0.376	5.598	-2.219	-6.162	-2.158	-3.0369	2376.7	2.09	1.48	0.00695	0.000919

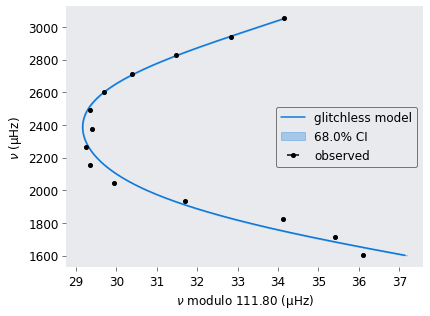

[41]:

data.to_netcdf('data/obs_inference_data.nc')

[41]:

'data/obs_inference_data.nc'

[ ]:
